Pass Encrypted contactless card for keypad

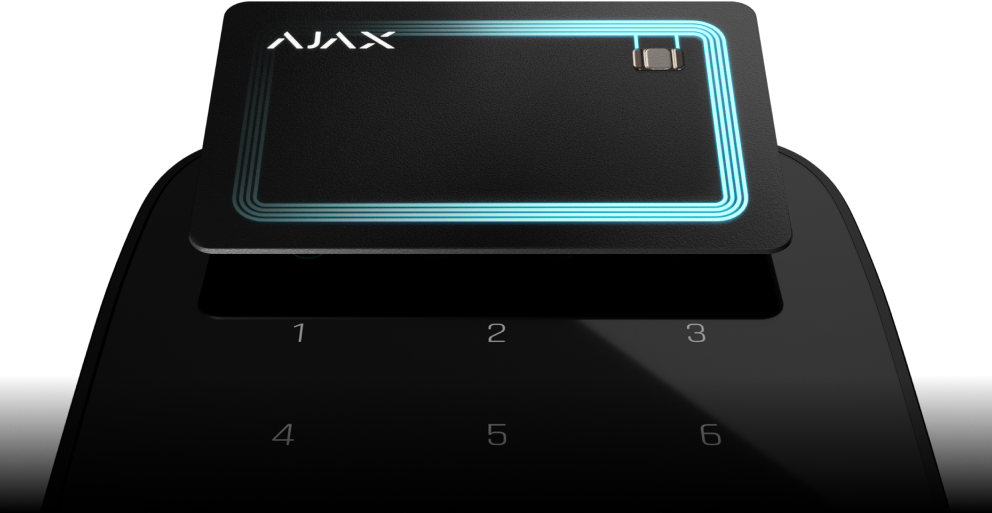

Quick access to the security system To disarm the security system, just present Pass to the reader on the keypad. This copy-protected card allows you to manage security modes without a password, user account and access to the Ajax app.
Top-tier data protection To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify the user by card or key fob. DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
Tech specs
Communication technology DESFire®
Operating standard ISO 14443-А (13.56 MHz)
Encryption +
Authentication +
Protection from signal interception +
Possibility to assign the user +
Maximum number of bound hubs Up to 13
Compatibility KeyPad Plus
Operating temperature range From –10°C to +40°C
Operating humidity Up to 75%
Overall dimensions 86 × 54 × 0.8 mm
Weight 6 g
