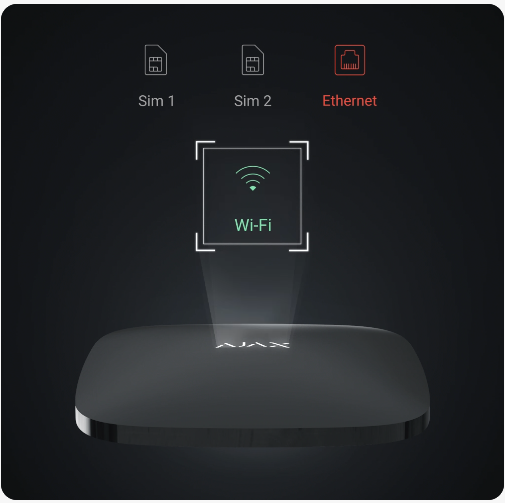

Always in touch — via cables, Wi-Fi, LTE
Communication with the outer world is critical for alarm control panels. Its reliability guarantees prompt delivery of alarm signals to Alarm Receiving Center and system users.
Hub 2 Plus makes external communication stability absolute. It has 4 communication channels and supports LTE. Such configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up. Switching between channels happens seamlessly in seconds.
Alarm verification with photo in 9 seconds
Photo verification is the future of the security industry. This technology is an optimal solution for both commercial and residential premises — it is accessible and built to respect privacy. Animated series of photos from MotionCam detectors allow users and CMS operators to evaluate the situation in action. But photo cameras are activated only in response to alarms, never by request.
Hub 2 Plus can manage up to 200 MotionCam detectors and deliver photo confirmations of alarms to users and alarm monitoring companies in just 9 seconds, even when it uses SIM cards for communication. Thanks to LTE support.

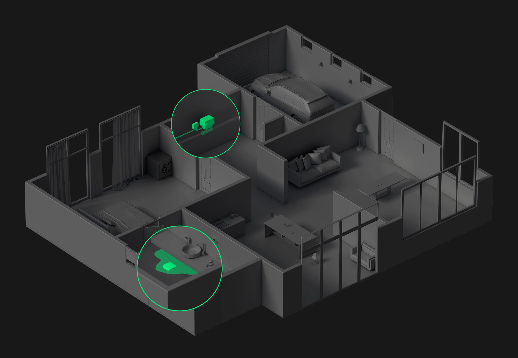

Automated security
Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location. It can automatically arm and disarm the entire security system or certain groups by schedule. Moreover, it can instantly activate a smoke security machine in case of intrusion, cut power supply and turn on emergency lighting in case of fire, or cut water in case of leakage. Using automation devices, Hub 2 Plus can control lights, electric locks, and roller shutters. Scenarios can be activated in response to security mode changes, alarm triggerings, or Button commands.
Tech specs
| Classification | Security system control panel with four in-built channels for external communication and support of detectors with photo cameras |
|---|---|
| Installation | Indoors |
| Connected devices | 200 |
| Video surveillance | Up to 100 cameras or DVRs |
| Users | 200 |
| Rooms | 50 |
| Security Groups | 25 |
| Connected ReX | 5 |
| Scenarios | 64 |
| MotionCam detectors support | + |
| Mobile apps | iOS 11.0 and later Android 4.4 and later |
| Communication channels | 2 SIM cards 2G (GSM900/DCS1800 (B3/B8)) 3G (WCDMA 850/900/2100 (B1/B5/B8)) LTE (FDD B1/B3/B5/B7/B8/B20) Wi-Fi (802.11 b/g/n) Ethernet |
| Alarm signal | Delivery time: 0.15 s Notification types: SMS, call, push-notification |
| Switching between 2G and 3G | Instant |
| Switching between SIM cards | 4 minutes |
| CMS connectivity | CMS connectivity: Contact ID, SIA Photo verification integrated in Manitou, SBN, WBB, V1/F1, Kronos, eLipse, Sentinel and Horus |
| Operating system | OS Malevich |
| Power supply | 110-240 V with pre-installed battery 6 V with alternative 6V PSU power supply Energy consumption from the 110-240 V grid — 10 W |
| Built-in back-up battery | Li-Ion 3 А·h Ensures up to 15 hours of operation when using SIM card only |
| Jeweller radio technology | Communication range with detectors — up to 2000 m in an open area Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Detector polling period — 12–300 seconds Frequency hopping |
| Wings radio technology | Transmission of visual confirmations Delivery verification of packages |
| Operating temperature range | From -10°С to +40°С |
| Anti-sabotage | Forgery prevention Notifications about jamming Tamper to detect back lid opening and unmounting from SmartBracket |
| Remote set up | + |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 351 g |
| Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |
| Complete set | Ajax Hub Plus intelligent central unit SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM cards (depending on region) User’s guide |
