Compatibility
The power supply unit is only compatible with Hub 2 and Hub 2 Plus control panels. It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter.
Installation

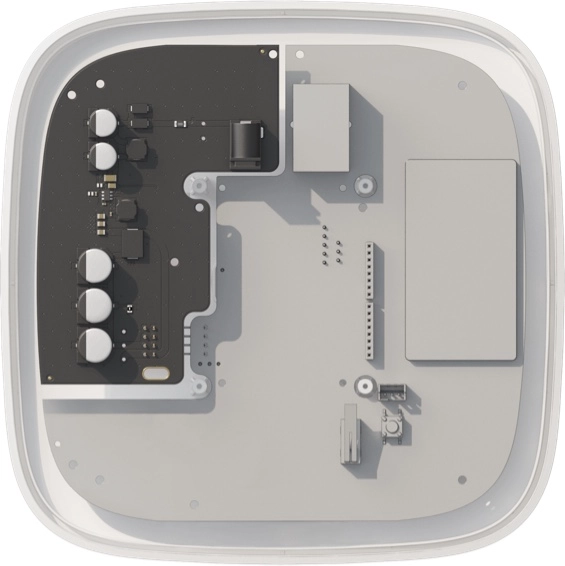

6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
Tech specs
| Compatibility | Hub 2 and Hub 2 Plus |
|---|---|
| recommended batteries | Zinc air and alkaline batteries with 4.2-16 V operating power |
| Input voltage | 4.2-16 V |
| Output voltage | 4.8 V ± 5% |
| Switch-on voltage | 4.2 V ± 2.5% |
| Switch-off voltage | 3-3.4 V (depending on the load) |
| Maximum Input current | 2.2 A at 4.2 V; 0.5 A at 16 V |
| Maximum Output current | 1.5 А |
| Plugging in | Plug socket: 6.5 x 2 mm Plug: 5.5 x 2.1 mm |
| Operating temperatures range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| Dimensions | 98 × 70 × 17 mm |
| Weight | 26 g |
| Complete set | 16V PSU for Hub 2/Hub 2 Plus Terminal adapter Quick Start Guide |
| Warranty | Warranty service for 24 months from the date of sale. |
